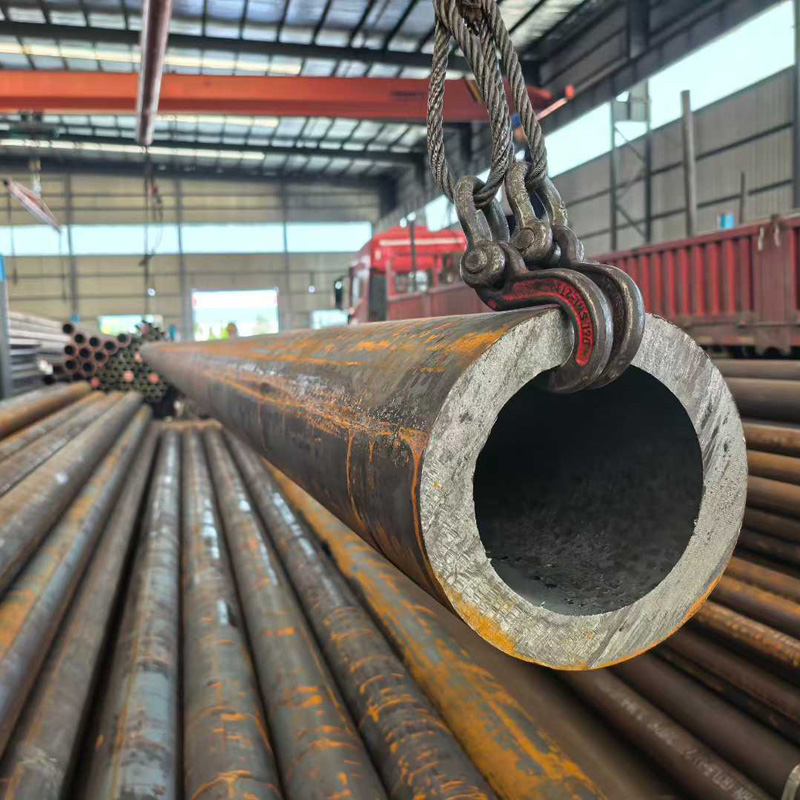

ASTM A519 Grade 1045 seamless stainless steel tube is a medium carbon steel mechanical tubing known for its higher strength, hardness, and wear resistance compared to lower carbon grades. With a carbon content of approximately 0.45%, Grade 1045 offers an excellent balance of strength and toughness, making it ideal for components subjected to high stress and dynamic loads. It is widely used in applications requiring good machinability combined with improved mechanical properties.
Key Features:
1) Higher strength and hardness than low carbon steel grades
2) Good wear resistance and durability
3) Excellent machinability
4) Available in versatile conditions: HR, CW, SR, A, and N
ASTM A519 Gr. 1045 Chemical Composition & Mechanical Property:
Grade | Chemical Composition, % |
C | Mn | P(Max) | S(Max) |
1020 | 0.18-0.23 | 0.30-0.60 | 0.040 | 0.050 |
1045 | 0.43-0.50 | 0.60-0.90 | 0.040 | 0.050 |
Tensile Requirements |
Grade | Delivery Condition | Yield Strength (min)
MPa (psi) | Tensile Strength (min)
MPa (psi) |
1020 | HR | 220 (32,000) | 345 (50,000) |
CW | 415 (60,200) | 485 (70,300) |
SR | 345 (50,000) | 450 (65,300) |
A | 195 (28,300) | 330 (47,900) |
N | 235 (34,100) | 380 (55,100) |
1045 | HR | 310 (45,000) | 515 (74,700) |
CW | 550 (79,800) | 620 (89,900) |
SR | 485 (70,300) | 550 (79,800) |
A | 240 (34,800) | 450 (65,300) |
N | 330 (47,900) | 515 (74,700) |
General information:
Standard: ASTM A519
Grade: 1045
Size: OD: 6-350mm; WT: 1-50mm; L: 5.8m / 6m / 12m; random / Cut to length
Ends:
1) Plain ends
2) Beveled ends
3) Deburred ends
4) Special cutting / chamfering available upon request
Available Coating: Bared, oiled, phosphated, pickled & oiled, anti-corrosion coating
Package: bundled with steel strips for small or medium sizes, loose packing for large diameter tubes, waterproof material wrapped, wooden cases or crates for precision tubes (if required)
Hebei K-Steel Pipe Industry Our advantage:
Flexible Project Customization
We provide tailored manufacturing solutions to meet diverse project requirements, including customized outer diameter, wall thickness, and length specifications. In addition, we offer precision end preparation and a full range of anti-corrosion coating options to ensure optimal performance in various operating environments. This flexibility enables us to deliver line pipe solutions that align seamlessly with your technical and application needs.
Fast & Reliable Lead Time
With strong mill partnerships and readily available inventory resources, we are able to shorten production cycles and respond quickly to urgent project demands. Our integrated supply network ensures stable material availability, efficient scheduling, and on-time delivery — helping clients keep their projects on track without delay.
Advanced Technical & Quality Assurance
Equipped with our own metallurgical laboratories and supported by trusted third-party inspection agencies, we ensure every line pipe meets international standards and project specifications. Comprehensive testing and verification guarantee consistent mechanical properties, chemical composition, and coating integrity, providing clients with reliable, high-quality pipeline solutions.
Rapid Delivery & Complete Logistics
Leveraging fast supply capabilities and a well-established logistics network, we ensure timely delivery of line pipes to any project location. Our streamlined transportation and warehousing system minimize lead time, helping clients maintain smooth operations and meet critical project schedules.
