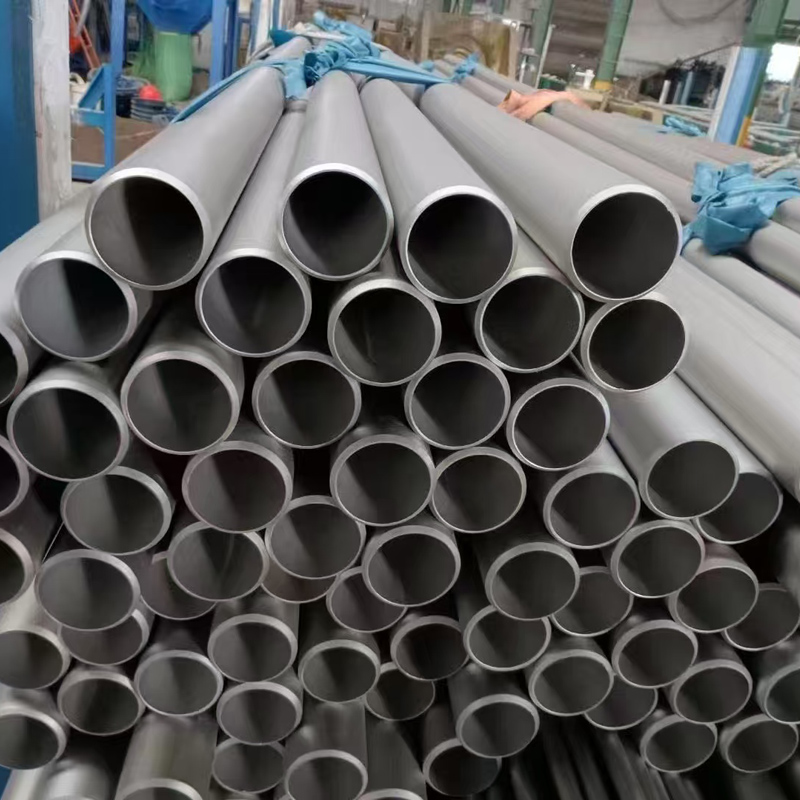

ASTM A213 TP316L is a seamless austenitic stainless steel tube specifically designed for high-temperature and high-pressure service in boilers, superheaters, and heat exchangers. The "L" grade indicates low carbon content (≤0.035%), which provides superior resistance to intergranular corrosion after welding. The addition of molybdenum (2.0-3.0%) enhances corrosion resistance, particularly against chlorides and other aggressive media.
Key Features:
1) The molybdenum content provides excellent resistance to chlorides, acids, and marine environments, outperforming TP304L in aggressive conditions
2) Suitable for high-temperature and chemical processing applications
3) Low carbon content reduces risk of intergranular corrosion
4) High weldability and formability
ASTM A213 Gr. TP316L Chemical Composition & Mechanical Property:
Chemical Composition |
Chemical Composition, % | TP304L | TP310S | TP316L | TP321 |
C, max | 0.035 | 0.08 | 0.035 | 0.08 |
Mn, max | 2.00 | 2.00 | 2.00 | 2.00 |
P, max | 0.045 | 0.045 | 0.045 | 0.045 |
S, max | 0.030 | 0.030 | 0.030 | 0.030 |
Si, max | 1.00 | 1.00 | 1.00 | 1.00 |
Cr | 18.0-20.0 | 24.0-26.0 | 16.0-18.0 | 17.0-19.0 |
Ni | 8.0-12.0 | 19.0-22.0 | 10.0-14.0 | 9.0-12.0 |
Mo | / | / | 2.00-3.00 | / |
Tensile Requirements | TP304L | TP310S | TP316L | TP321 |
Yield Strength (min)
MPa (psi) | 170 (24,700) | 205 (29,700) | 170 (24,700) | 205 (29,700) |
Tensile Strength (min)
MPa (psi) | 485 (70,300) | 515 (74,700) | 485 (70,300) | 515 (74,700) |
General information:
Standard: ASTM A213
Grade: TP316L
Size: OD: 21.3-406mm; WT: 1.0-20mm; L: SRL / DRL / Cut to length
Ends:
1) Beveled ends
2) Plain ends
3) Threaded ends
Available Finishing: annealed & pickled (AP); annealed (BA); polished
Package: Hexagonal bundled with steel strips for small or medium sizes, loose packing for large diameter pipes, plastic caps on both ends, waterproof material wrapped, wooden cases or crates for small sizes or special requirements.
Shipment: Land transportation by truck or train, sea transportation by container shipment or bulk vessel.
