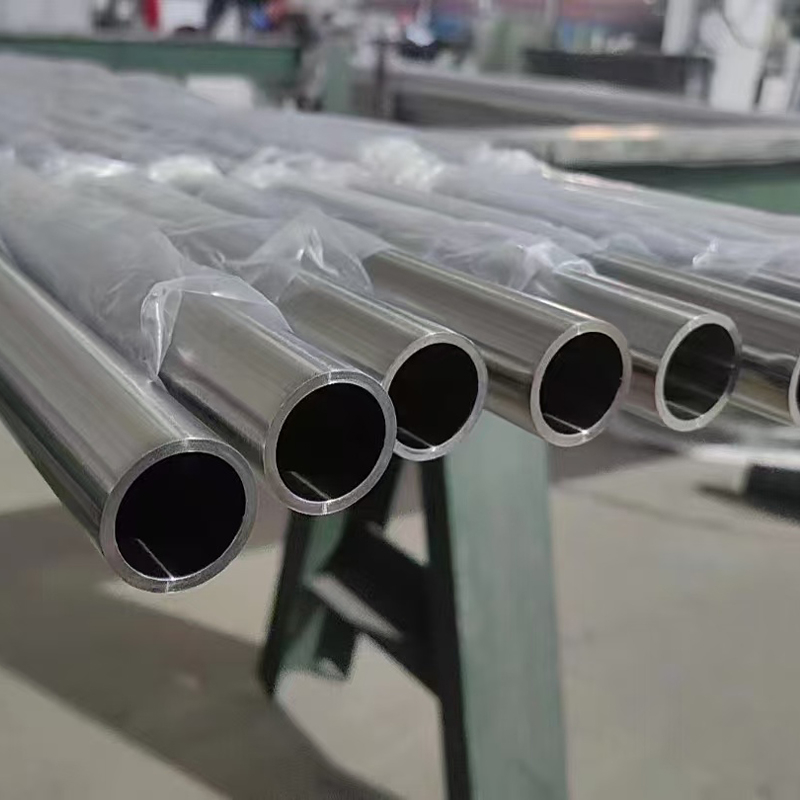

ASTM A270 Grade TP316L stainless steel sanitary tubing from Hebei K-Steel Pipe Industry is specifically designed for high-purity and corrosive-resistant applications in the pharmaceutical, biotechnology, food and beverage, and cosmetic industries. Manufactured in accordance with ASTM A270 standards, this tubing offers excellent resistance to pitting, crevice corrosion, and stress corrosion cracking, thanks to its low carbon content (0.03% max) and molybdenum addition.
Key Features:
1) Typically available in OD sizes from 1/2" to 6" or metric equivalents, with wall thickness schedules meeting sanitary requirements
2) Polished internal and external surfaces for hygienic applications
3) Excellent corrosion resistance in chloride-containing and sanitary environments
4) Suitable for orbital welding, tri-clamp fittings, and other sanitary connections
ASTM A270 Gr. TP316L Chemical Composition & Mechanical Property:
Chemical Composition |
Chemical Composition, % | TP304L | TP316L |
C, max | 0.035 | 0.035 |
Mn, max | 2.00 | 2.00 |
P, max | 0.045 | 0.045 |
S, max | 0.030 | 0.030 |
Si, max | 1.00 | 1.00 |
Ni | 8.0-12.0 | 10.0-14.0 |
Cr | 18.0-20.0 | 16.0-18.0 |
Mo | / | 2.00-3.00 |
N | / | / |
Tensile Requirements | TP304L | TP316L |
Yield Strength (min)
MPa (psi) | 170 (24,700) | 170 (24,700) |
Tensile Strength (min)
MPa (psi) | 485 (70,300) | 485 (70,300) |
General information:
Standard: ASTM A270
Grade: TP316L
Size: OD: 12.7-168mm; WT: 1.2-3.0mm; L: SRL / DRL / Cut to length
Ends:
1) Beveled ends
2) Plain ends
Available Finishing: mechanically polished (MP); Electro-polished (EP); mill finish or matte polished (Ra ≤ 0.8 μm); pickled & passivated (P&P)
Package: Hexagonal bundled with steel strips, plastic caps on both ends, waterproof material wrapped, wooden cases or crates for small sizes or special requirements.
Shipment: Land transportation by truck or train, sea transportation by container shipment or bulk vessel.
Our advantage:
Flexible Project Customization
We provide tailored manufacturing solutions to meet diverse project requirements, including customized outer diameter, wall thickness, and length specifications. In addition, we offer precision end preparation and a full range of anti-corrosion coating options to ensure optimal performance in various operating environments. This flexibility enables us to deliver line pipe solutions that align seamlessly with your technical and application needs.
Fast & Reliable Lead Time
With strong mill partnerships and readily available inventory resources, we are able to shorten production cycles and respond quickly to urgent project demands. Our integrated supply network ensures stable material availability, efficient scheduling, and on-time delivery — helping clients keep their projects on track without delay.
Advanced Technical & Quality Assurance
Equipped with our own metallurgical laboratories and supported by trusted third-party inspection agencies, we ensure every line pipe meets international standards and project specifications. Comprehensive testing and verification guarantee consistent mechanical properties, chemical composition, and coating integrity, providing clients with reliable, high-quality pipeline solutions.
Rapid Delivery & Complete Logistics
Leveraging fast supply capabilities and a well-established logistics network, we ensure timely delivery of line pipes to any project location. Our streamlined transportation and warehousing system minimize lead time, helping clients maintain smooth operations and meet critical project schedules.
