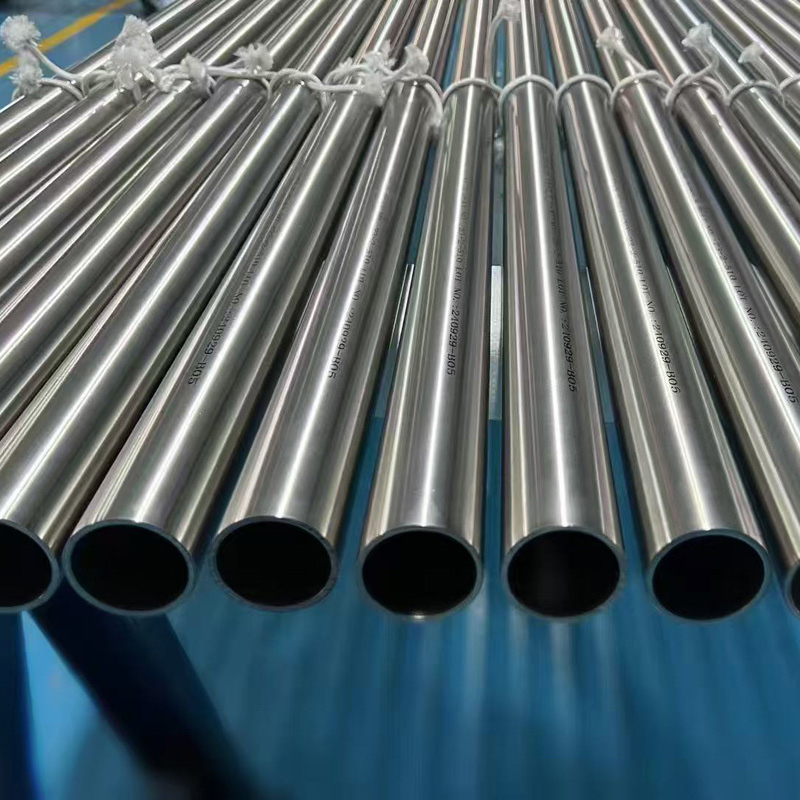

ASTM A312 Grade TP321 (UNS S32100) stainless steel pipe is a titanium-stabilized austenitic stainless steel pipe designed for high-temperature service and corrosion resistance applications. It offers excellent resistance to intergranular corrosion and improved performance in environments where exposure to elevated temperatures is continuous. Available in seamless (SMLS), straight-seam welded, or heavily cold worked welded forms.
Key Features:
1) Excellent high-temperature resistance, suitable for long-term service at 800–1500°F (427–816°C)
2) Titanium stabilization prevents carbide precipitation
3) Strong resistance to intergranular corrosion, performs well in mildly acidic, organic, and high-temperature oxidizing environments
4) excellent formability & weldability
ASTM A312 Gr. TP321 Chemical Composition & Mechanical Property:
Chemical Composition |
Chemical Composition, % | TP304L | TP310S | TP316L | TP321 |
C, max | 0.035 | 0.08 | 0.035 | 0.08 |
Mn, max | 2.00 | 2.00 | 2.00 | 2.00 |
P, max | 0.045 | 0.045 | 0.045 | 0.045 |
S, max | 0.030 | 0.030 | 0.030 | 0.030 |
Si, max | 1.00 | 1.00 | 1.00 | 1.00 |
Cr | 18.0-20.0 | 24.0-26.0 | 16.0-18.0 | 17.0-19.0 |
Ni | 8.0-13.0 | 19.0-22.0 | 10.0-14.0 | 9.0-12.0 |
Mo | / | 0.75 max | 2.00-3.00 | / |
N | / | / | / | 0.10 |
Tensile Requirements | TP304L | TP310S | TP316L | TP321 |
Yield Strength (min)
MPa (psi) | 170 (24,700) | 205 (29,700) | 170 (24,700) | 205 (29,700) |
Tensile Strength (min)
MPa (psi) | 485 (70,300) | 515 (74,700) | 485 (70,300) | 515 (74,700) |
General information:
Standard: ASTM A312
Grade: TP321
Size: OD: 6–1219mm; WT: Schedule 10, 40, STD, XS, to 160; L: SRL / DRL / Cut to length
Ends:
1) Beveled ends
2) Plain ends
Available Finishing: annealed & pickled; bright annealed; polished
Package: Hexagonal bundled with steel strips for small or medium sizes, loose packing for large diameter pipes, plastic caps on both ends, waterproof material wrapped, wooden frames for safe transport or special requirements
Shipment: Land transportation by truck or train, sea transportation by container shipment or bulk vessel.
